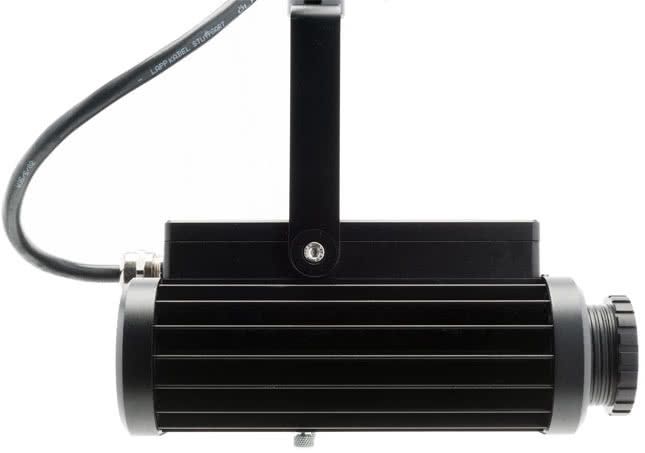

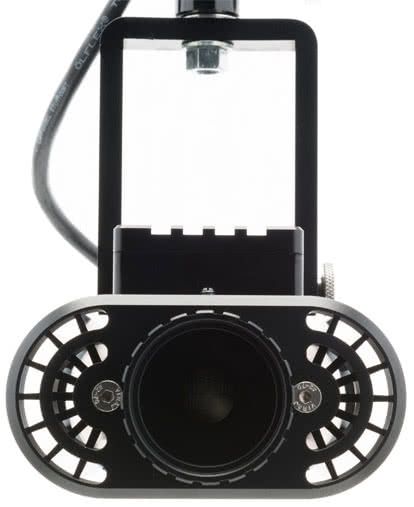

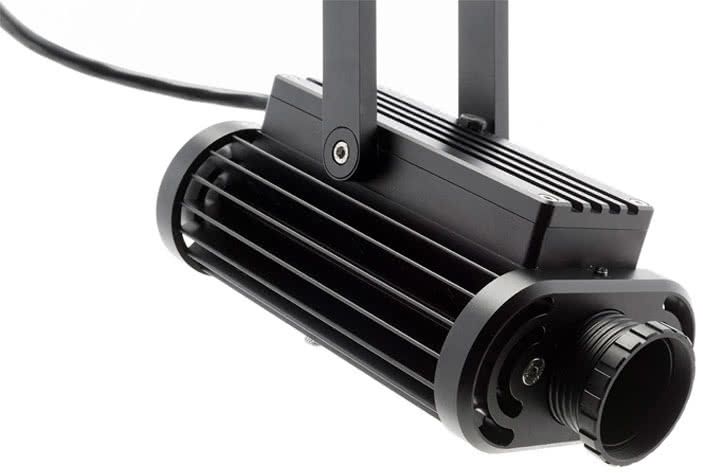

Rosco Image Spot Gobo Projector - IP40 w/DMX - Black, No Lens
Rosco Image Spot Gobo Projector - IP40 w/DMX - Black, No Lens
We’re currently taking enquiries for this product in New Zealand — please leave your details and we’ll assist with your order. Pricing shown is indicative only.
Using a mere 45W of power, the Image Spot LED projector provides an amazing amount of light output from a versatile and compact design. The fixture’s crystal clear optics ensure bright imaging in virtually any environment, and enable vivid gobo projection up to 40 feet (12m) away!
Image Spot is available in both IP40 and IP65 models, allowing it to be used indoors and outdoors, and an Image Spot HT model is available for installations into areas with high ambient temperatures.
Please note that Image Spot does not ship with a lens. Choose from the available narrow, medium and wide Lens Optic Accessories when ordering to achieve the imaging or beam spread your project requires.
Accepts Image Spot Gobos And Permacolor Dichroic Glass Filters
Use the Image Spot to project any Rosco pattern – from the world’s largest library of standard gobo designs – or, project a custom gobo with a specific image, logo or message. The Image Spot is ready to accept steel, black and white & color glass gobos, and even thicker Effects Glass gobos such as Image Glass and ColorWaves. The Image Spot gobo cassette also accepts Rosco Permacolor dichroic glass filters for long term color effects, correction or enhancement.
Crystal Clear Optics
Image Spot's engineered optics produce a light beam with the highest uniformity and resolution, which enables the fixture to project even illumination or a crisp gobo image at distances up to 40 feet (12m).
Designed For Use Indoors Or Outdoors
Available in two different variants – an IP40 model for indoor use and an IP65 model for outdoor use – the Image Spot offers the versatility to create spot-lighting or project gobos everywhere those effects may be required. An Image Spot HT model is also available for installations into areas with high ambient temperatures.
Manual or DMX Controls
Control the output of the Image Spot using its on-board dimming controls or by connecting the Image Spot to a DMX control device for remote intensity control. The IP40 model connects to DMX via standard RJ45/Cat5 cable, while the IP65-DMX unit connects via a factory-installed, exterior-rated Cat5 cable.
What’s In The Box:
- Image Spot LED Projector
- Manual
- Image Spot Welcome Pack – Includes a steel breakup gobo
Please note that the Image Spot does not ship with a lens. Make sure to choose an Image Spot Lens Optic Accessory when ordering to achieve the beam spread your project requires. Lens options include: 19°, 25° and 30°. Click on Photometrics tab above or download the Image Spot Photometrics Data Sheet for more information.
Input Voltage: 100-240VAC
Power Consumption: 45 Watts at maximum output
Color Temperature Options: 5500K or 3000K
CRI:
- 5500K Model: 80
- 3000K Model: 96
Output:
- 5500K Model: 3,000 lumens
- 3000K Model: 2,400 lumens
Lumen Maintenance: 50,000 hours at 45°C (LM-79-08)
Power Connection: 6.5 ft (2m) insulated cable, unterminated (connector not included)
Data: DMX512
- RJ45 Connector (IP40)
- 2m Cat5e Cable/Gland (IP65)
DMX Addressing: Rosco Programming Software
- www.rosco.com/imagespot/software
- USB to RJ45 Programming Cable (IP40)
- USB to RS485 Programming Cable (IP65)
Image Spot Dimensions
Dimensions:
- Image Spot: 7.8in x 4.8in x 6.8in (198mm x 123mm x 172mm) (including yoke)
- Image Spot HT: 9.3in x 4.8in x 6.8in (236mm x 123mm x 172mm) (including yoke)
Weight:
- Image Spot: 5.5 lbs (2.5 kg)
- Image Spot HT: 5.9 lbs (2.7 kg)
Operating Temperature:
- Image Spot: -13° to 104° F (-25° to 40° C)
- Image Spot HT: -13° to 122° F (-25° to 50° C)
Humidity: 0 - 95% non-condensing
Housing: Anodized Aluminum Extrusion
Approvals:
- ETL / UL Standards #62368-1 and #60950-22
- cETL / CSA C22.2 #62368-1 and #6095-22
- CE
- IP40 Rated (indoor use) or IP65 Rated (outdoor use)
