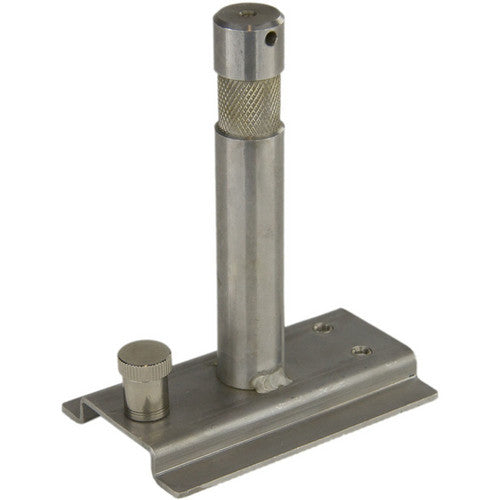

LitePad Axiom Baby Pin Bracket — 5/8" pin for standard grip
Slides into the quick-release mounting system on the back of any LitePad Axiom and locks with the integral spring-action pin. The 5/8" (baby) pin connects to the huge range of grip gear with a 5/8" receiver.
Image: Rosco
Axiom straight into standard grip
No adapters needed — the baby pin goes directly into C-stand grip heads, clamps and other 5/8" receivers used on film, TV and theatre rigs.
- Locks into the Axiom quick-release mount with a spring-action pin
- 5/8" pin fits standard 5/8" (baby) receivers
- Quick to swap with other Axiom brackets
Grip heads, clamps and C-stands
C-stands & grip heads
Drop the Axiom into a C-stand grip head for flexible positioning on set.
Clamps & set rigging
Use with clamps and grip hardware that have a 5/8" receiver to rig in sets, cars and tight spaces.
Studio & product work
Mount small Axioms as fill or accent light on standard studio grip.
What it is — and what it isn’t
Use it for
- LitePad Axiom fixtures and Axiom housings (all sizes)
- Any grip gear with a 5/8" (baby) receiver
- Fast rigging on C-stands
Don’t use it for
- Original (non-Axiom) LitePads without the Axiom housing
- Light stands with a 5/8" stud — use the Axiom 5/8" Receiver Bracket
- LitePad Loop ring lights
Getting the best result
- Line the bracket up with the quick-release mounting system on the back of the Axiom housing.
- Slide it in until the integral spring-action pin clicks and locks it in place.
- Tug gently to confirm it’s secure before rigging.
- To remove, release the spring pin and slide the bracket out.
- Insert the pin into the 5/8" receiver and tighten the receiver’s knob.
Key details
| Brand | Rosco |
|---|---|
| Part number | 290639010058 |
| Fits | LitePad Axiom quick-release mounting system (all Axiom sizes) |
| Connection | 5/8" (16mm) baby pin, male |
| Locking | Integral spring-action pin |
Common questions
What does the Axiom Baby Pin Bracket connect to?
Any grip gear with a 5/8" (baby) receiver — for example a C-stand grip head or a clamp with a 5/8" receiver.
Can I put it on a light stand?
Most light stands end in a 5/8" stud, not a receiver. For those, use the Axiom 5/8" Receiver Bracket instead.
Does it fit every Axiom size?
It fits the Axiom quick-release mounting system on the back of the housing. Check that your stand and grip are rated for the fixture’s weight, especially larger sizes.
Will it fit an older LitePad?
Only if the LitePad is in an Axiom housing. Unhoused panels use the clamp-style LitePad mounting brackets.
Check your LitePad model before ordering — if you’re unsure, send us the model or part number and we’ll confirm. Compatibility and specifications are from Rosco product data and are a guide only.
