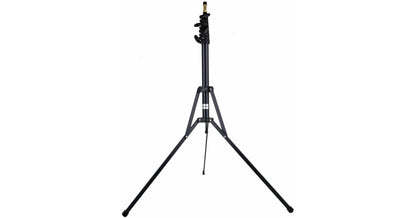

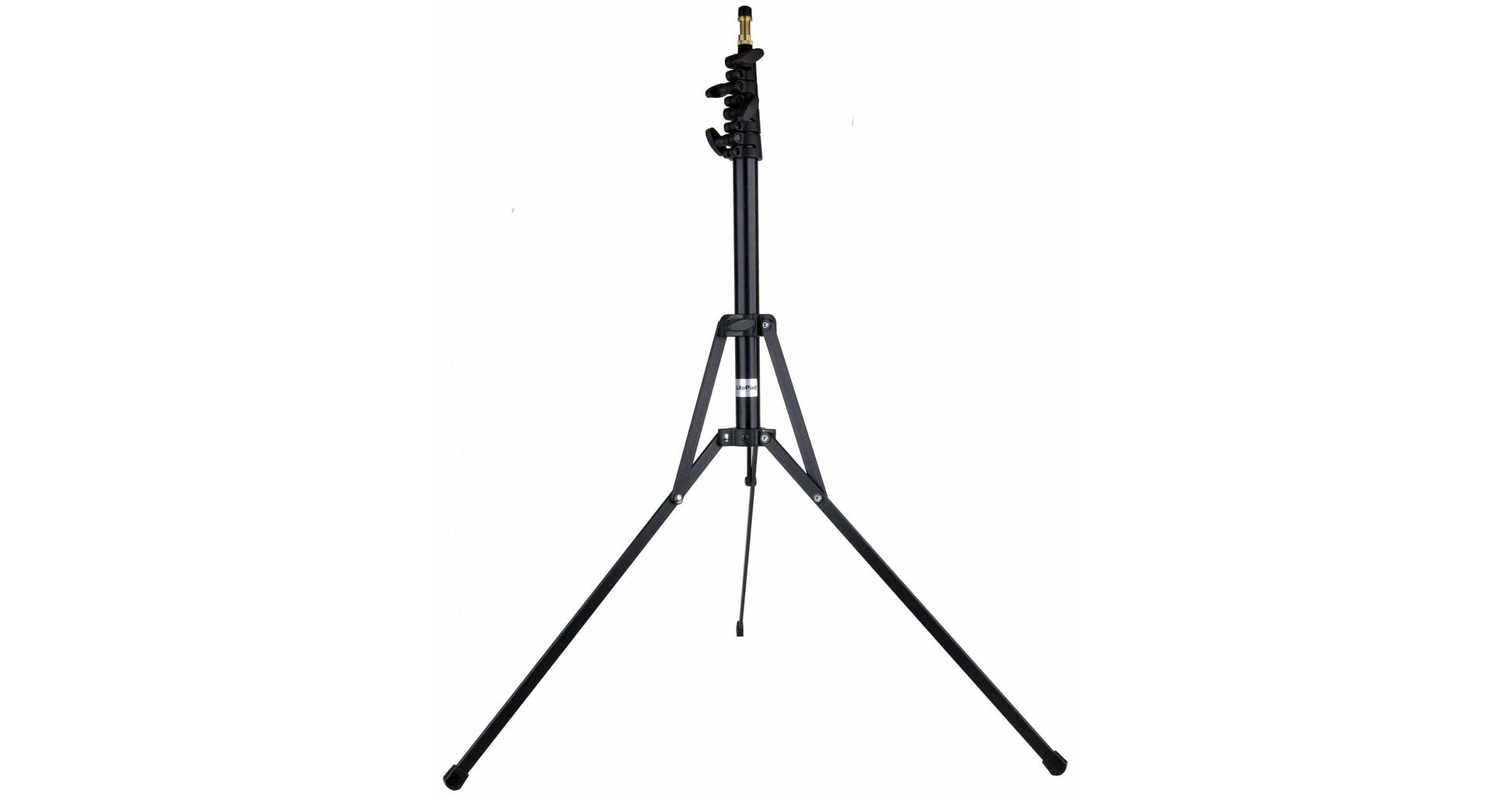

LitePad Light Stand — compact four-riser stand to 2.27 m
A compact, lightweight light stand that can hold any Rosco LitePad using the proper mounting attachment. Four risers, 490 mm collapsed, up to 227 cm high and 2.5 kg max. load.
Image: Rosco
Light enough for the kit bag
Short collapsed length and low weight make it easy to carry several in a LitePad kit.
- Holds LitePads with the correct mounting attachment
- Four risers for height from compact to 2.27 m
- 102 cm footprint for stability
- Packs down to 490 mm
- Weighs just 1.1 kg
- Rated to 2.5 kg
Location, studio and events
Location & interviews
Lightweight stands for LitePad kits on location.
Studio & product
Position small LED panels for fill, rim and accent light.
Events & displays
Compact stands for small lighting setups at events.
What it is — and what it isn’t
Use it for
- LitePads with a suitable mounting attachment
- Loads up to 2.5 kg (5.5 lb)
- Travel and location kits
Don’t use it for
- Loads over 2.5 kg — including the 24" x 24" LitePad Axiom (Rosco lists it at 13.7 lb)
- Heavy fixtures, flags or booms
- Use without a LitePad mounting attachment
Getting the best result
- Spread the legs fully on a level surface.
- Fit your LitePad mounting attachment (e.g. Axiom 5/8" Receiver Bracket or LitePad Swivel Arm) to the top.
- Mount the LitePad and lock the attachment.
- Raise the risers one at a time, heaviest (lowest) section first, and tighten each lock.
- Sandbag the base in breezy or busy areas.
Key details
| Brand | Rosco |
|---|---|
| Part number | 290661049089 |
| Configuration | Four risers |
| Collapsed length | 490 mm (19.2") |
| Max. height | 227 cm (89.3") |
| Footprint diameter | 102 cm (40.1") |
| Max. load | 2.5 kg (5.5 lb) |
| Weight | 1.1 kg (2.4 lb) |
Common questions
What LitePads can the LitePad Light Stand hold?
Rosco says it can hold any Rosco LitePad using the proper mounting attachment, within its 2.5 kg (5.5 lb) max. load. The 24" x 24" Axiom is heavier than that.
How do I attach an Axiom to it?
Use an Axiom 5/8" Receiver Bracket, or the LitePad Swivel Arm with the Axiom 1/4"-20 Bracket for adjustable angle.
How tall does it go?
Up to 227 cm (89.3"), and it collapses to 490 mm (19.2").
How much does it weigh?
1.1 kg (2.4 lb).
Check your LitePad model before ordering — if you’re unsure, send us the model or part number and we’ll confirm. Compatibility and specifications are from Rosco product data and are a guide only.
